Conventional, Bolt-On Chisel Plow Sweeps

Nichols conventional chisel plow sweeps have been designed with a large web and long nose for extra strength and lasting penetration. Each sweep is constructed of high-quality hardened steel which results in significantly better wear resistance. Available in four different stem angles and two material thicknesses.

OR

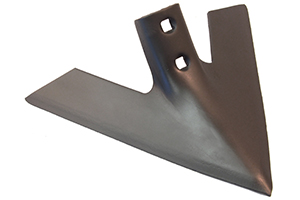

4716-2 4716-2 SWEEP; CHSLPLOW; 1/4X16
Sweep for Chisel Plows; 1/4" x 16"; Conventional wing; 2" shank, 47 degree; two 1/2" holes on 2-1/4" centers.

4718-2 4718-2 SWEEP; CHSLPLOW; 1/4X18
Sweep for Chisel Plows; 1/4" x 18"; Conventional wing; 2" shank, 47 degree; two 1/2" holes on 2-1/4" centers.

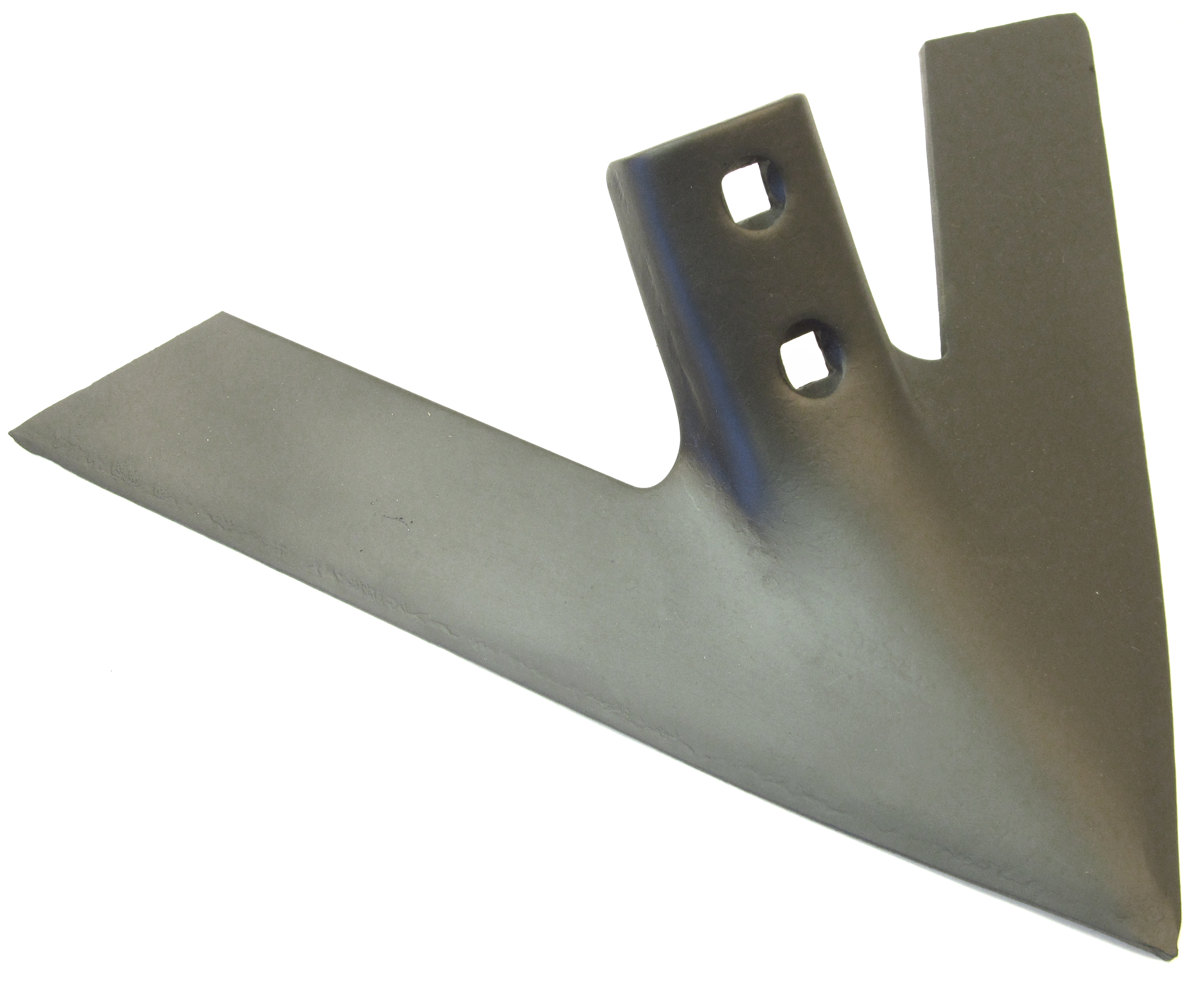

4718-2 HF 4718-2 HF SWEEP; CHSLPLOW; 1/4X18; HF
Sweep for Chisel Plows; 1/4" x 18"; Conventional wing; 2" shank, 47 degree; two 1/2" holes on 2-1/4" centers; hardfaced on bottom.

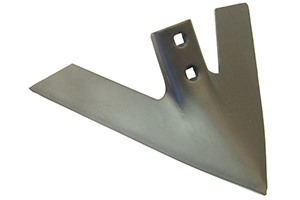

4718-2 HFS 4718-2 HFS SWEEP; CHSLPLOW; 1/4X18; HFS
Sweep for Chisel Plows; 1/4" x 18"; Conventional wing; 2" shank, 47 degree; two 1/2" holes on 2-1/4" centers; hardfaced on bottom and shank.

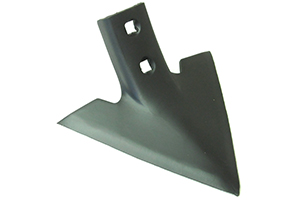

HC10-2 HC10-2 SWEEP; CHSLPLOW; 1/4X10
Sweep for Chisel Plows; 1/4" x 10"; Conventional wing; 2" shank, 50 degree; two 1/2" holes on 2-1/4" centers.

HC10-2 HF HC10-2 HF SWEEP; CHSLPLOW; 1/4X10; HF
Sweep for Chisel Plows; 1/4" x 10"; Conventional wing; 2" shank, 50 degree; two 1/2" holes on 2-1/4" centers; hardfaced on bottom.

HC12-2 HC12-2 SWEEP; CHSLPLOW; 1/4X12
Sweep for Chisel Plows; 1/4" x 12"; Conventional wing; 2" shank, 50 degree; two 1/2" holes on 2-1/4" centers.

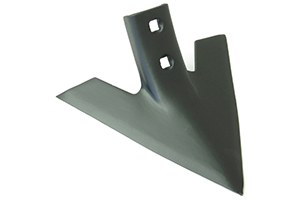

HC12-2 HF HC12-2 HF SWEEP; CHSLPLOW; 1/4X12; HF
Sweep for Chisel Plows; 1/4" x 12"; Conventional wing; 2" shank, 50 degree; two 1/2" holes on 2-1/4" centers; hardfaced on bottom.

HC12-2 HFT HC12-2 HFT SWEEP; CHSLPLOW; 1/4X12; HFT
Sweep for Chisel Plows; 1/4" x 12"; Conventional wing; 2" shank, 50 degree; two 1/2" holes on 2-1/4" centers; hardfaced on top.

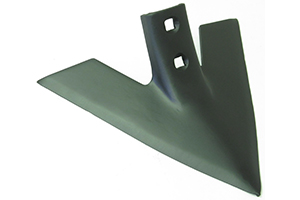

HC14-2 HC14-2 SWEEP; CHSLPLOW; 1/4X14;
Sweep for Chisel Plows; 1/4" x 14"; Conventional wing; 2" shank, 50 degree; two 1/2" holes on 2-1/4" centers.


Page 1 of 7 (70 items)Prev[1]234567Next
